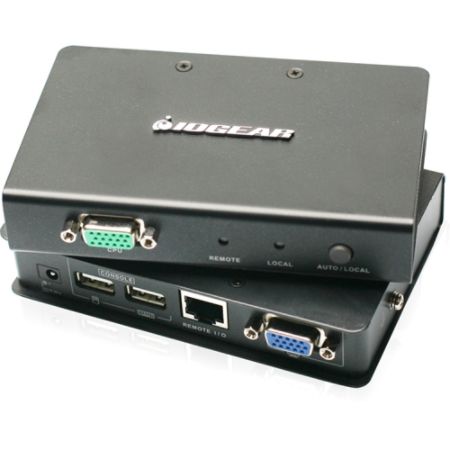

IOGEAR USB VGA KVM Console Extender Item # 843046
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
843046
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
The IOGEAR USB VGA KVM Console Extender allows access to a PC with USB or USB KVM switch from a remote USB VGA console (VGA monitor, USB keyboard, and USB mouse) via CAT5e/6 cable.This unit is perfect for moving the console away from the computer or the KVM switch. Your console can be moved out of the server room to a location that may be more comfortable and quieter. It is also useful for security and monitoring purposes; you can place the unit in a secure area at the same time that you put the console in the most convenient location for user access and monitoring.An USB VGA KVM Console Extender is a cost effective solution because it uses inexpensive UTP (CAT5e/6) cabling to extend the distance, versus expensive and bulky coaxial cabling. It is easy to install and operate thanks to its Auto Signal Compensation (ASC) technology, which senses the distance and adjusts the signal levels accordingly so there is no need to do any DIP switch setting. It also provides a built-in Application-Specific Integrated Circuit (ASIC) for greater reliability and compatibility.
Product Details
| Item # | 843046 |
| OfficeMax # | 23630180 |
| Manufacturer # | CM6350 |
| height | 1 in |
| Number of Network (RJ-45) Ports | 2 |
| quantity | 1 |
| Connectivity Technology | Wired |
| width | 5 in |
| package contents | GCE500U KVM Cosole/Extender; 2 x Rack Mount Kit; 1 x USB KVM Cable; 2 x Grounding Wire; 2 x Power Adapter; 1 x Installation Guide; 1 x Warranty Card |
| depth | 3.4 in |
| Product Name | GCE500U KVM Cosole/Extender |
| manufacturer | Iogear, Inc |
| Graphic Mode | WUXGA |
| Proprietary Interface | Yes |
| VGA | Yes |
| Maximum Operating Distance | 500 ft |
| brand name | IOGEAR |
| USB | Yes |
| Number of Remote Users Supported | 1 |
| Number of VGA Ports | 2 |
| Number of Local Users Supported | 1 |
| Number of USB Ports | 4 |
| Number of Computers Supported | 1 |
| Maximum Video Resolution | 1920 x 1200 |
| Input Voltage | 5.3 V DC |
| Network (RJ-45) | Yes |
| KVM Technology | Analog |
| form factor | Rack-mountable |
| warranty length | 3-year limited |
| model name | GCE500U |
| Show More ▾ |
